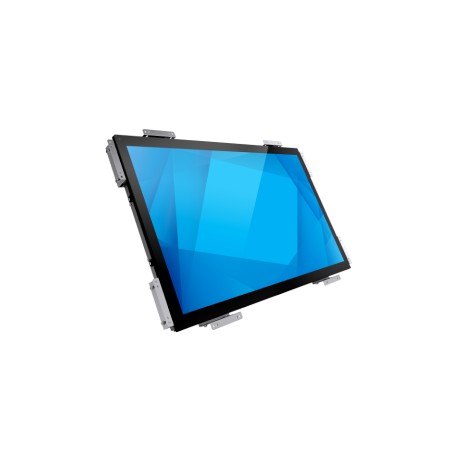

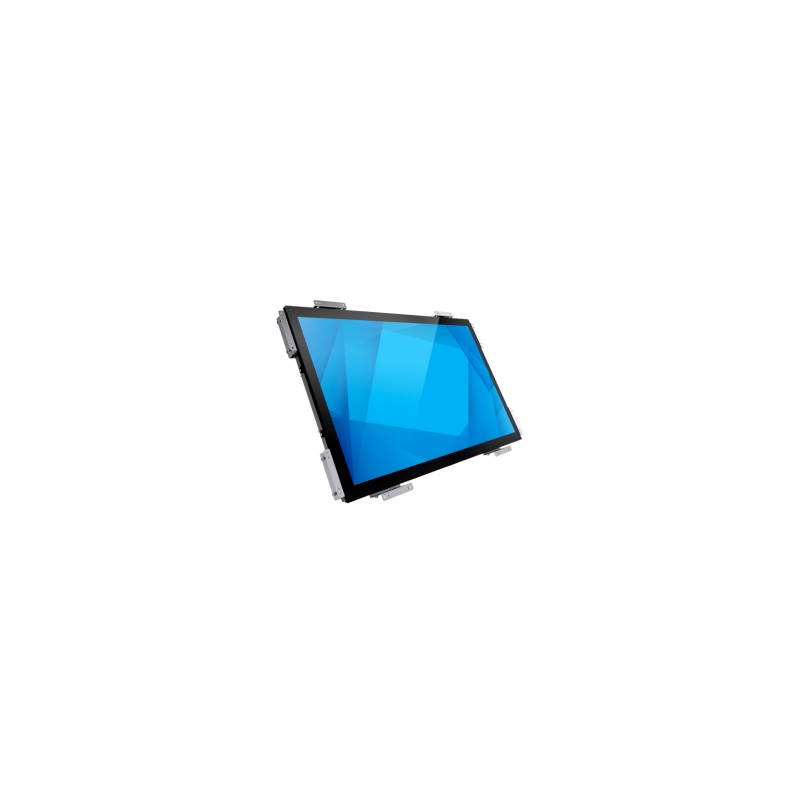

4363L 43-inch Full HD Open-Frame TouchPro PCAP (anti-glare)

SpecificationsPart Number(s)TouchPro PCAP (anti-glare) - E344260Enclosure ColorBlackTouch Technology & CapacityPCAP (TouchPro® Projected Capacitive) - 40 Touch with Palm Rejection and Touch Thru capabilityTouch ThruSupports up to 6mm glass/3mm plastic with up to 2 touches. Supports gloves up to 1.4mmTouch InterfaceUSBDiagonal Size42.5'' diagonal, Active matrix TFT LCD (LED)On Screen DisplayAccessible through switches on the OSD Control Remote accessory.Controls (side): Menu, Up, Down, SelectSettings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Recall Defaults, Video Source, Touch, RTC, MDC, Touch ThroughLanguages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, JapaneseLockouts: OSD, PowerRTC Settings: The clock/time and the monitor ON/OFF schedule can be changed within this menu. Daylight Saving time is adjusted for automatically and will change the current time by one hour to accommodate daylight savings time.See user manual for full details.Aspect Ratio16:9Active Area (mm)37.04" x 20.84" / 940.86 mm x 529.254 mmResolution1920 x 1080 @ 60hzOther Supported Resolutions640x480 @ 60Hz800x600 @ 56/60Hz1024x768 @ 60Hz1280x720 @ 60Hz1280x800 @ 60Hz RB1280x960 @ 60Hz1280x1024 @ 60Hz1366x768 @ 60Hz1366x768 @ 60Hz RB1440x900 @ 60Hz1440x900 @ 60Hz RB1680x1050 @ 60Hz1680x1050 @ 60Hz RB1920x1080 @ 60HzViewing AngleHorizontal: ±89° or 178° total / Vertical: ±89° or 178° totalNumber of Colors8-bit (16.7 million)Brightness (typical)LCD panel: 450 nitsTouchPro PCAP: 387 nitsResponse Time-total (typical)8 msecContrast Ratio4000:1I/O PortsHDMI 1.4 x2USB 2.0 Type B (for Touch)RJ45 (for optional OSD remote)VGAVideo2x HDCP-capable HDMI on Type A connectorFemale DE-15 VGA connectorInput Video Horizontal Sync frequency range: 31.5 – 80 KHzInput Video Vertical Sync (frame rate) frequency range: 47 – 63 KHzPowerInput connector (power): IEC 60320-C14Input signal specifications (power): 100-240VAC 50/60HzMaximum Operating Time24 hours/dayPower Consumption (Typical)ON (monitor + AC/DC adapter): 51 WSLEEP (monitor + AC/DC adapter): 0.61 WOFF (monitor + AC/DC adapter): 0.20 WDimensions39.34" x 23.13" x 2.61" / 999.28 mm x 587.5 mm x 66.4 mmShipping Box Dimensions48.06" x 9.85" x 31.12" / 1220 mm x 250 mm x 790 mmWeight (Unpackaged)37.77 lbs / 17.17 KgWeight (Packaged)50.79 lbs / 23.09 KgOperating TemperaturePortrait/Landscape Mode: 0°C to 40°C / 32°F to 104°FTabletop Mode: 0° C to 35° C / 32°F to 95°FStorage TemperaturePortrait/Landscape Mode: -20°C to 60°C / -4°F to 140°FTabletop Mode: -20° C to 60° C / -4° F to 140° FHumidityOperating: 20% to 80%Storage: 10% to 90% (38.7°C max wet bulb temperature)SealabilityTouchscreen sealed to bezelTouchscreen sealed to LCDMTBF50,000 hours demonstratedWarranty3-yearExtended Service Options4 year warranty coverage + AUR - Elo P/N: E7401355 year warranty coverage + AUR - Elo P/N: E740330Regulatory approvals and declarationsArgentina S-MarkAustralia RCMCanada CUL, ICChina CCCEurope CEJapan VCCIKorea KCC e-StandbyMexico CoCRussia EACTaiwan BSMIUnited States UL, FCCInternational CBMexico NOMRoHS, China RoHS, WEEEEnergy Star 8.0UL 60950 ball-drop compliantIK07 impact compliantCB (International safety) (IEC/EN60950-1+IEC/EN62368-1)Mounting OptionsVESA 400mm x 400mmSee dimensional drawings for detailsOther FeaturesAmbient Light Sensor - changes panel color to match ambient light, Auto WakeWhat's in the BoxQuick Install GuideHDMI 1.4 cable (Type A plug to Type A plug)VGA cable (DB-15 male to DB-15 male)USB cable (Type A plug to Type B plug)RJ45 Wired OSD remotePower cable, IEC 60320-C13 to NA plugPower cable, IEC 60320-C13 to EU/KR plugPower cable, IEC 60320-C13 to UK plugEnergy label according to EU Regulation 2019/20138 sets Flushmount Brackets 48 pcs ScrewsFoam GasketOptions / Peripherals / UpgradesElo Remote OSD (RJ45) - Elo P/N: E483757Optional PCAP Stylus Pen - Elo P/N: E066148Elo Backpack® 4 (Value Model)- Elo P/N: E393754Elo Backpack® 4 (Standard Model) - Elo P/N: E393359 Elo Touch
