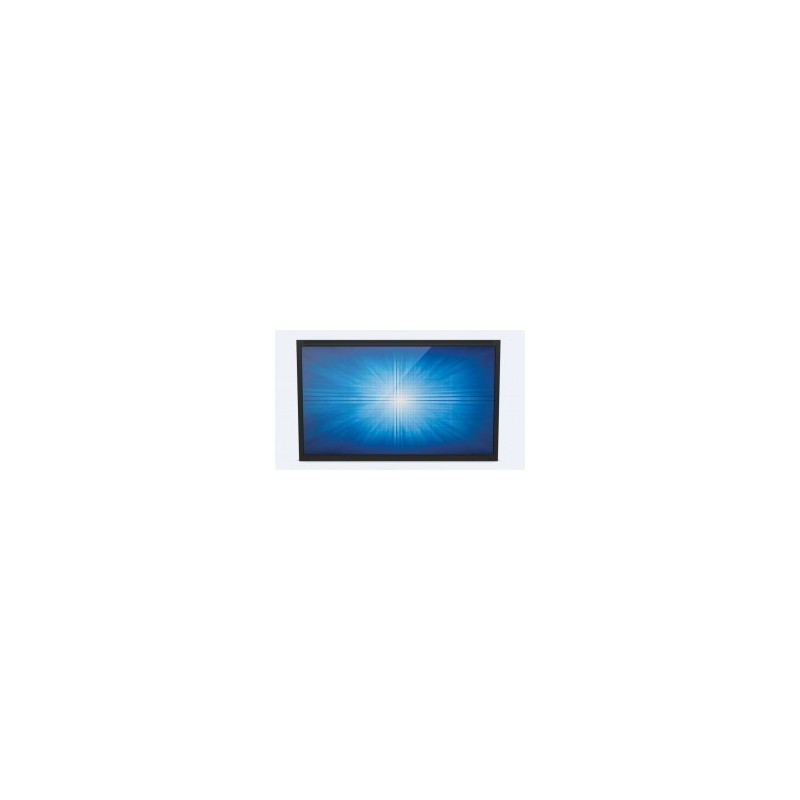

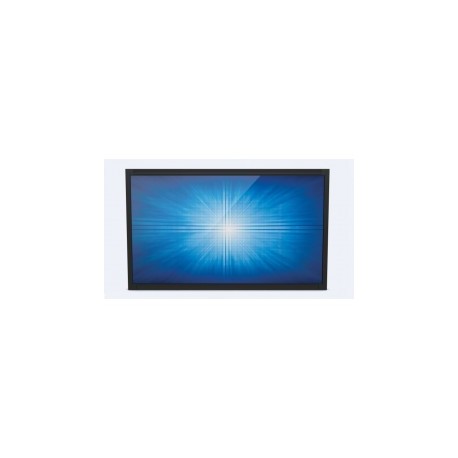

Monitor ELOTOUCH 3243L E304029 LED 32" wide Open Frame WW FHD Projected Capacitive 10-touch USB Clear Zero-bezel VGA & HDMI video interface Gray Somos Distribuidores de la Marca. Solicitar cotización antes de adquirir el producto para verificación de disponibilidad. Part Number(s) PCAP (Worldwide) - E304029 Enclosure Color Black Touch Technology & Capacity SAW (IntelliTouch® Surface Acoustic Wave) - Dual Touch PCAP (TouchPro™ Projected Capacitive) - 10 Touch Touch Interface USB Diagonal Size 31.5'' diagonal, Active matrix TFT LCD (LED) On Screen Display Accessible through switches on the OSD Control Remote accessory. Controls (side): Menu, Up, Down, Select Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Video Source Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese Lockouts: OSD, Power RTC Settings: The clock/time and the monitor ON/OFF schedule can be changed within this menu. Daylight Saving time is adjusted for automatically and will change the current time by one hour to accommodate daylight savings time. See user manual for full details. Aspect Ratio 16:9 Active Area (mm) IntelliTouch Dual Touch: 27.57" x 15.54" / 700.4mm x 394.85mm PCAP: 27.57" x 15.54" / 700.4mm x 394.9mm Resolution 1920 x 1080 Other Supported Resolutions 640 x 480 at 60Hz 800 x 500 at 60Hz 800 x 600 at 56/60Hz 1024 x 768 at 60Hz 1280 x 720 at 60Hz 1280 x 960 at 60 Hz 1280 x 1024 at 60Hz 1360 x 768 at 60 Hz 1366 x 768 at 60 Hz 1440 x 900 at 60 Hz 1600 x 1200 at 60 Hz 1680 x 1050 at 60 Hz 1920 x 1080 at 60 Hz Viewing Angle Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total Number of Colors 16.7 million Brightness (typical) LCD panel: 500 nits IntelliTouch Dual Touch: 450 nits PCAP: 425 nits Response Time-total (typical) 8 msec Contrast Ratio 3000:1 Input Video Format Analog VGA, HDCP-capable HDMI 1.3 (WW model only), DVI (Asian model only) Input Video Signal Connector Female DE-15 VGA, HDMI Type A Receptacle Connector (WW model only) Female DVI-D Dual Link Connector (Asian model only) Input Video Frequency Horizontal: 31 - 75 KHz Vertical: 47 - 63 Hz Power Supply Internal AC Input Voltage AC: 100-240 VAC, 50/60 Hz Input Connector AC: IEC 60320 C14 Maximum Operating Time 24 hours/day Power Consumption (Typical) Monitor + AC/DC adapter (Typical @ 120V at 60Hz): ON: IntelliTouch - 47.4W / PCAP - 47.9W SLEEP: IntelliTouch - 1.1W / PCAP - 0.9W OFF: 0.1W (Typical @ 230V at 50Hz): ON: 47.1W SLEEP: IntelliTouch - 1.1W / PCAP - 1.0W OFF: 0.1W Dimensions IntelliTouch: 29.0" x 17.4" x 2.25" / 736.4mm x 443mm x 57.2mm PCAP: 29.42" x 17.82" x 2.1" / 747.3mm x 452.7mm x 55mm Shipping Box Dimensions 39.0" x 26.4" x 11.65" / 992mm x 672 mm x 296mm Weight (Unpackaged) IntelliTouch: 26.7 lbs / 12.1 kg PCAP: 24.6 lbs / 11.2 kg Weight (Packaged) IntelliTouch: 41.1 lbs / 18.6 kg PCAP: 39 lbs / 17.7 kg Operating Temperature 0°C to 40°C / 32°F to 104°F Storage Temperature -20°C to 60°C / -4°F to 140°F Humidity Operating: 20% to 80% Storage: 10% to 90% Sealability Touchscreen sealed to bezel Touchscreen sealed to LCD MTBF 50,000 hours demonstrated Warranty 3-year Regulatory approvals and declarations Argentina S-Mark Australia RCM Canada cUL, IC China CCC Europe CE Japan VCCI Korea KCC e-standby Mexico CoC Russia EAC Taiwan BSMI United States UL, FCC International CB RoHS, China RoHS, WEEE United States UL 60950 ball-drop compliant Mounting Options 400mm x 200mm VESA 4-hole mounting interface on rear of unit Side mounting brackets included What's in the Box IntelliTouch (Worldwide) - E326202 QIG (With Driver), Japan Kiosk Class A info, 8 pc brackets, 16 pc M4x5 screws, HDMI cable (Type A plug to Type A plug), VGA cable (DE-15 male to DE-15 male), USB cable (Type A plug to Type B plug), power cable - IEC 60320-C13 to - NA plug / EU/KR plug / UK plug / AR plug / CH plug / TW plug / JP plug, 3-pin to 2-pin adapter for JP power cable, Energy label according to EU Regulation 1062/2010 IntelliTouch (Asia) - E326398 QIG (With Driver), 8 pc brackets, 16 pc M4x5 screws, DVI-D cable (male to male), VGA cable (DE-15 male to DE-15 male), USB cable (Type A plug to Type B plug), power cable, IEC 60320-C13 to CH plug PCAP (Worldwide) – E304029 QIG (With Driver), Japan Kiosk Class A info, HDMI cable (Type A plug to Type A plug), VGA cable (DE-15 male to DE-15 male), USB cable (Type A plug to Type B plug), power cable - IEC 60320-C13 to - NA plug / EU/KR plug / UK plug / AR plug / CH plug / TW plug / JP plug, 3-pin to 2-pin adapter for JP power cable, Energy label according to EU Regulation 1062/2010 PRECIO EN USD CON IVA INCLUIDO Y GARANTÍA EN MÉXICO Las imágenes solo se muestran de forma ilustrativa. Elo Touch
